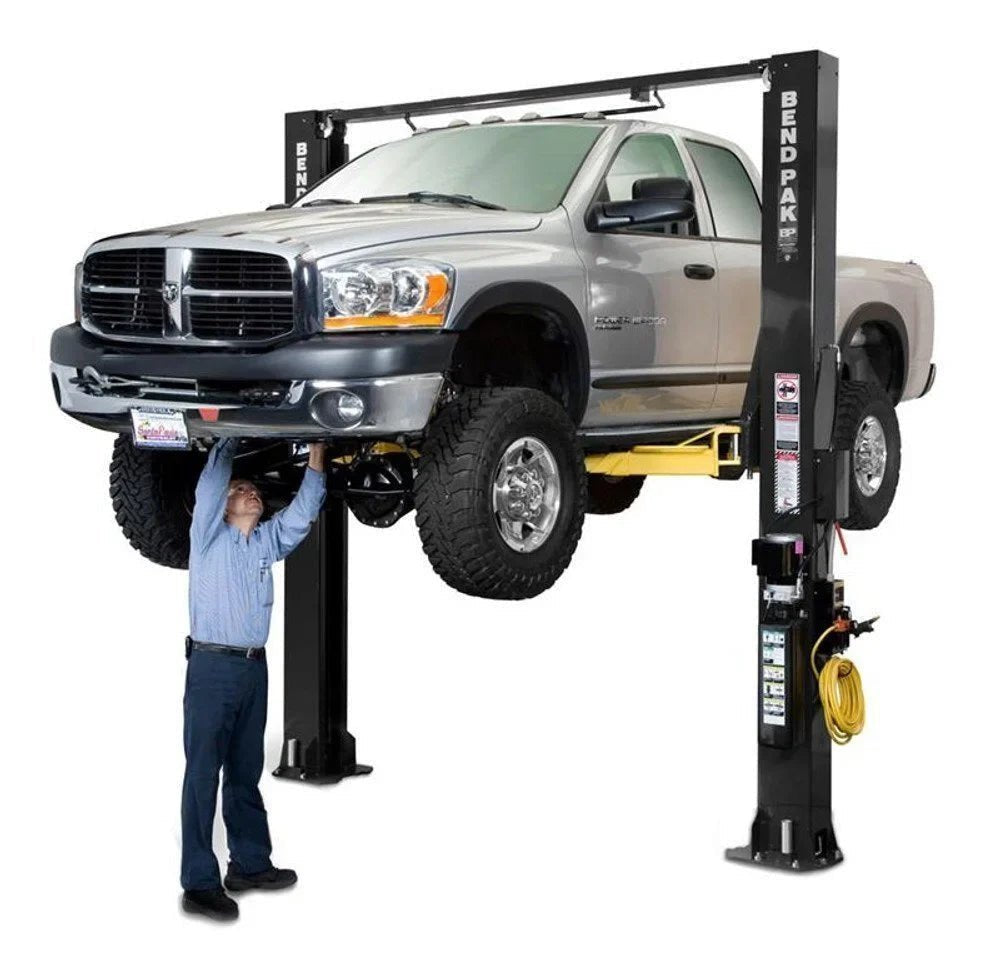

The safe and rugged XPR-10S-168 two-post lift features extended height columns for added overhead clearance and an adjustable top beam to accommodate wide or narrow installation set-ups. The adjustable width design allows you to choose the best setting for your specific space or vehicle lifting requirements. The highly sophisticated yet simple and dependable XPR-Series design requires very little service or maintenance for an overall lower cost of ownership. All BendPak’s XPR two-post models feature dual “direct-drive” low-pressure cylinders, maintenance free UHMW load bearings, single-piece columns, extra-tall lifting carriages and triple-telescoping arm configurations for increased arm positioning versatility.

  • 10,000-lb lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Bolt-on 24″ column extensions provide added overhead clearance
  • Expandable top beam accommodates wide or narrow configurations
  • Padded overhead safety shutoff bar
  • Single-piece columns
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Oversized 53″ tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Large, 17″ x 19″ A36 steel base plate
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Single-point safety release
  • Safety locks in each column spaced every 3″
  • Automatic arm restraints
  • Heavy-duty 1/2″ aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • 4-piece 63 mm stackable adapter set comes standard
  • Triple-telescoping arms
  • Versatile drop-in contact pads with stackable adapters
  • ALI Approved.
MODEL XPR-10S-168
Lifting Capacity* 10,000 Lbs. / 4,536 kg.
*Max Capacity / Front Axle 5,000 Lbs. / 2,268 kg.
*Max Capacity / Rear Axle 5,000 Lbs. / 2,268 kg.
A – Height Overall: 169″ / 4,293 mm.*
B – Width Overall: (NARROW) 132″ / 3,353 mm.
B – Width Overall: (WIDE) 145″ / 3,683 mm.
C – Width Outside of Columns: (NARROW) 126-3/4″ / 3,225 mm.
C – Width Outside of Columns: (WIDE) 139-3/4″ / 3,555 mm.
D – Floor To Overhead Switch: 165″ / 4,191 mm.*
E – Inside Columns: (NARROW) 105.5″ / 2,680 mm.
E – Inside Columns: (WIDE) 118.5″ / 3,010 mm.
F – Reach (Front Arm Min.): 27-1/2″ / 698 mm.
G – Reach (Front Arm Max.): 51-1/2″ / 1,308 mm.
H – Reach (Rear Arm Min.): 34″ / 863 mm.
I – Reach (Rear Arm Max.): 54-1/2″ / 1,384 mm.
J – Min. Pad Height: 4.25″ – 6-3/4″ / 108 mm. – 171 mm.
K – Rise: 69″ / 1,753 mm.
L – Max Lift Height (Pad Only): 73″ – 75″ / 1,854 – 1,905 mm.
M – Max Lift Height (3″ Adapter): 75.5″ – 77.5″ / 1,917 mm. – 1,968 mm.
N – Drive-Thru Clearance: (NARROW) 93″ / 2,362 mm.
N – Drive-Thru Clearance: (WIDE) 106″ / 2,692 mm.
Screw Pad Adjustment: 2″ / 51 mm.
Motor (**) 220 VAC / 60 Hz. 1Ph.
Time of full Rise: 45 Seconds
Max Load Per Arm: 2,500 Lbs. / 1134 Kg.
